Butterworth Tee LC Low Pass Filter Calculator

Enter value, select unit and click on calculate. Result will be displayed.


Enter your values:
Cutoff Frequency:
Impedance Z0:
Number of Components: (1-11)
Results:
Inductance: Capacitance:
Unit : Unit :
L1: C1:
L2: C2:
L3: C3:
L4: C4:
L5: C5:
L6:


The Butterworth type filter was first described by the British engineer Stephen Butterworth.

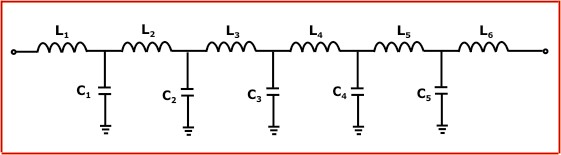

A Tee filter is a filter that has a two series elements and a parallel element connected in the shape of letter T.

Butterworth filter are characterized by a constant gain (flat response) across the midband of the circuit and a 20 dB per decade roll-off rate for each pole contained in the circuit.

Butterworth filters are termed maximally flat magnitude response filters, optimized for gain flatness in the pass band. The attenuation is -3db at cutoff frequency. Above the cutoff frequency the attenuation is -20 db.

The Butterworth is the only filter that maintains same shape for higher orders whereas other varieties of filters (Bessel, Chebyshev, elliptic) have different shapes at higher orders.

A Low pass filter is a filter that passes low-frequency signals but attenuates signals with frequencies higher than the cutoff frequency.
