| Equal Component Butterworth High Pass Filter
Calculator |
|
|
|
|
| Enter value of Cutoff Frequency, any one value - Resistor or Capacitor,
any one value - Resistor Rc or Resistor Rd and click on calculate. Result will be displayed.
|

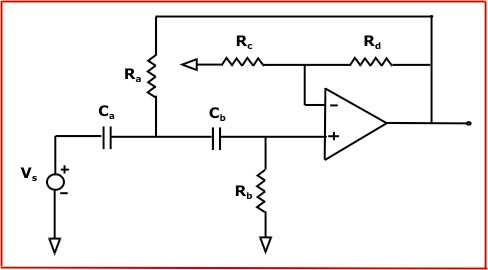

| Ra = Filter Resistor
Rb = Filter Resistor
(Ra = Rb)
Ca = Filter Capacitor
Cb = Filter Capacitor
(Ca = Cb)
Rc = Feedback Resistor
Rd = Feedback Resistor |
|
